Simplicity of Cabloor

Cabloor is a simple technical flooring solution with four interlocking elements. The Unipanel and Base connectors make up the frame of the system and the steel Flank and Central caps cover the cable access channels. Each module set of one Unipanel, one Base connector, one Central Cap and four Flank Caps covers 600mm x 600mm.
We supply a range of supporting accessories to ensure you achieve a perfect working solution including service boxes, ramps and edging rails.

Cabloor Cable Management Flooring Favicon

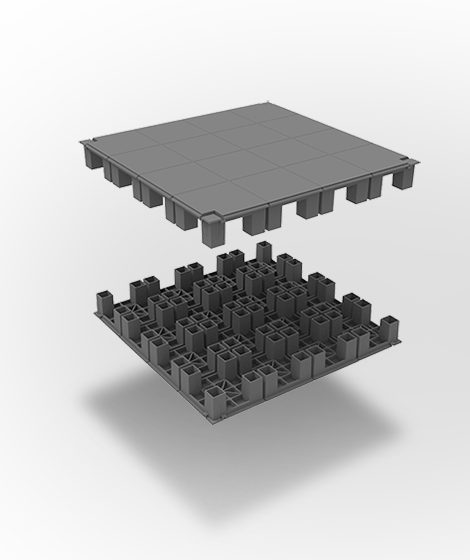

The UniPanel is composed of 16 self-supporting sub-panels, supported by 64 built-in pedestals, which have extra-ordinary uniform loading performance. The tough polypropene structure has effective fire retardant properties. The Unipanels can be cut to size to fit around pillars and walls. The Unipanels low profile 6cm height allows you to retain ceiling height.

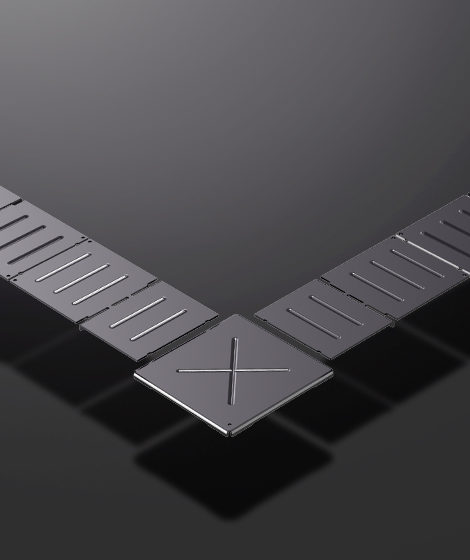

Flank and central caps form bridges over the cable trenches. These steel caps can easily be lifted without requiring any specialist tools to access the cables beneath. The steel caps have a corrosion resistant electro-deposition coating.

Flank and central caps form bridges over the cable trenches. These steel caps can easily be lifted without requiring any specialist tools to access the cables beneath. The steel caps have a corrosion resistant electro-deposition coating.

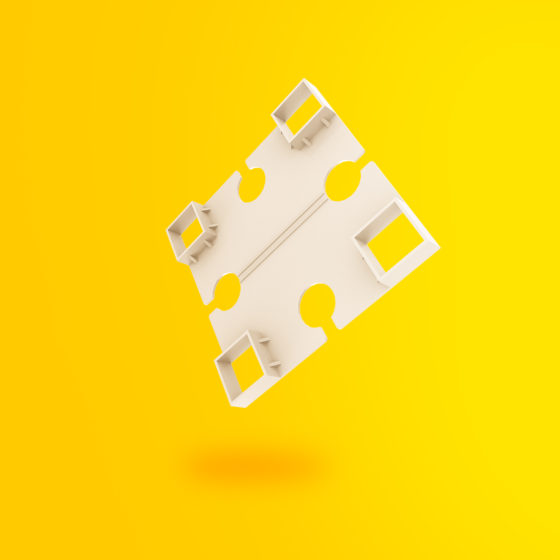

Base connectors hold the unipanels in a uniform grid formation. The channels they form between unipanels serve as a trench to lay cables in an organised fashion.

High quality PUA foam is recommended when laying onto solid surfaces to absorb impact and sound vibrations.

High quality PUA foam is recommended when laying onto solid surfaces to absorb impact and sound vibrations.

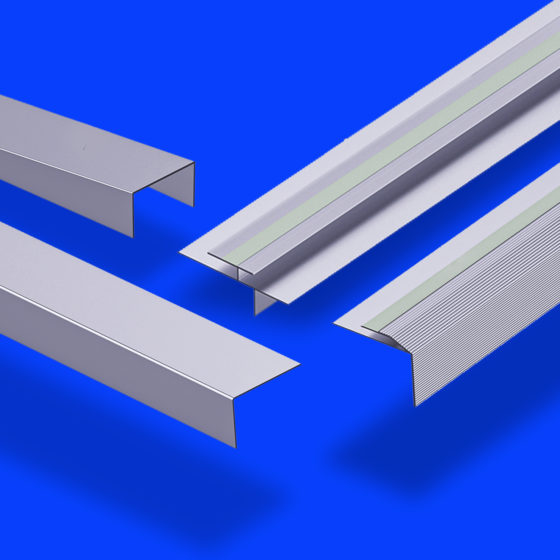

Range of finishing accessories including ramps and rails for edges, entrances and exhibitions.

Ramps meet ADA regulation: ramp length to system height 1:12 ratio.

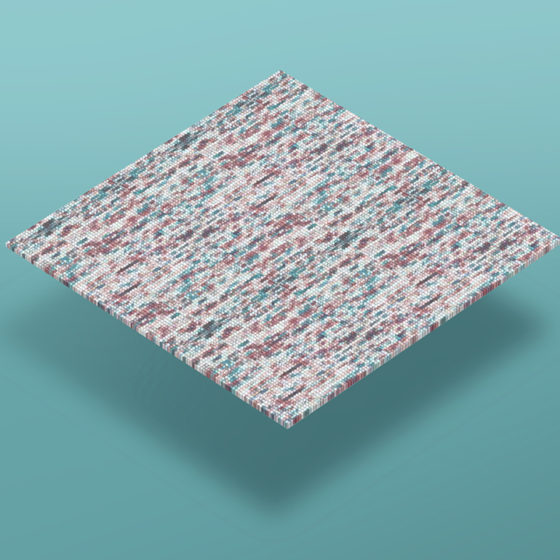

For a modern finish we recommend using vinyl or carpet tiles on the surface of Cabloor flooring systems. We work with the leading flooring surface companies offering a range of contemporary designs to suit your project’s interior design. A minimum thickness of 5mm covering is recommended.

For a modern finish we recommend using vinyl or carpet tiles on the surface of Cabloor flooring systems. We work with the leading flooring surface companies offering a range of contemporary designs to suit your project’s interior design. A minimum thickness of 5mm covering is recommended.

A range of complementary electric and networking accessories are available. Including service boxes designed to simplify networking and neatly integrate into Cabloor raised floor.
